Cono del azúcar que hace la máquina
Created with Pixso.

Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling

Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling

Nombre De La Marca: Gonghexiang
Número De Modelo: SD80-R65X3
Cuota De Producción: 1 set
Precio: Negociable
Capacidad De Suministro: 1 set/45 días hábiles
Información detallada
Lugar de origen:
Porcelana
Certificación:
ISO SGS
Número de modelo:
SD80-R65X3
Capacidad de producción:
9000-10000 piezas/hora
Tipo de gas:
Gas natural o GLP
Consumo de gas:
14-16 kg/hora
Operación:
Automático completo
No. de plato para hornear:
65 pcs.
Potencia de la máquina:
4.07kw
Estructura de máquinas:
Acero resistente y duradero
Material de placa para hornear:
Hierro fundido resistente al calor
Garantía:
un año
Servicio postventa:
Instalación, comisión y capacitación en el sitio
Destacar:
Alta eficiencia, reduce la mano de obra, la calidad del cono estable
Detalles de empaquetado:
recipiente
Capacidad de la fuente:
1 set/45 días hábiles
Resaltar:

full automatic sugar cone machine

,

mini sugar cone making machine

,

sugar cone machine for chocolate filling

Descripción del producto

Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling







Machine Brief Introduction

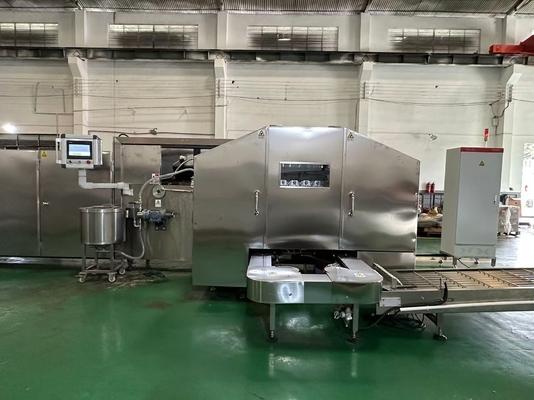

The SD80-R65x3 Mini Sugar Cone Baking Machine offers fully automatic operation with 9,000–10,000 pcs/hour capacity. It produces sugar cones of 68–70mm, suitable for chocolate filling and chocolate + biscuit snacks, making it an excellent solution for modern food production lines.



Full automatic, complete production process from batter injection, baking, cone forming and conveying. Save manpower and its robust steel structure enhances durability, while the 304 stainless steel exterior and conveyor guarantee hygiene and rust resistance, meeting food safrty standards.







Machine Model: SD80-R65x3







Mini Cone

⭐ Mini sugar cone, just 70mm, perfect for chocolate or chocolate + biscuit snacks filling

⭐ Ideal solution for food factories to create bite-sized chocolate cones.

⭐ Designed for food manufacturers: efficient, stable, and easy-to-use.



Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling 0









How the Automatic Sugar Cone Baking Machine Works?



① The prepared batter is automatically deposited onto the baking plates.

② The batter is evenly baked until it forms thin and crispy wafer sheets.

③ The baked wafer sheets are automatically transferred into the rolling system, where they are rolled into cone shapes.

④ The finished cones are released from the molds and placed onto the conveyor belt.

⑤ The conveyor system automatically delivers the cones for manual collection and packaging.



Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling 1







Machine Parameters



Machine Model No. SD80-R65x3
Total Power 4.07kw
Voltage 380V
Warranty One Year
Machine dimension  12x2.1x2 (meter)
Application Fields Ice Cream Factory, Food Factory
Gas Consumption 14-16kg/hour
Material Steel frame; heat-resistance cast iron; copper cone mold; #304 Stainless steel equipment housing and conveyor
Baking plate size 240mm x 280mm
Control System SIEMENS/DELTA
Control PLC Control
No. of baking plate 65pcs
Capacity 9,0000-10,000pcs/hour







After-Sales Service



➤  Warranty Service – All machines come with a standard warranty to cover manufacturing defects.

➤ ​ Spare Parts Supply – We guarantee timely delivery of spare parts to minimize downtime.

➤ ​ Technical Support – Our team offers 24/7 online technical assistance and video guidance.

➤ ​ On-Site Service – If needed, engineers can be dispatched to your factory for troubleshooting and maintenance.



Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling 2









Full Automatic Mini Sugar Cone Making Machine 10000pcs per hour for Chocolate Filling, chocolate + biscuit snacks filling 3



We are committed to providing reliable equipment and professional service to help our partners grow.



Discover how our wafer cone machines can boost your production efficiency.
